Copperloy® dock board

TRUCK DOCK BOARDS

Copperloy Truck Dock Boards

Copperloy truck dock boards safely bridge the gap between the dock and trailer.

Steel Dock Boards / Aluminum Dock Boards / Truck Dock Board Benefits / Determining Needed Capacity / Dock Board Videos

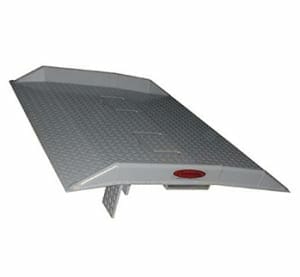

ALL STEEL CONSTRUCTED DOCK BOARDS

Steel Dock Board Made With Welded Steel Curbs

Copperloy Truck Dock Boards

  • 15,000 lb. & 20,000 lb capacities
  • Overall Widths 60”, 72”, and 84”
  • Lengths 36” to 96”
  • Lifting Loop standard on all steel truck dock board

COPPERLOY ALUMINUM CONSTRUCTED DOCK BOARD OPTIONS

All Aluminum Dock Board Made With Welded Aluminum Curbs

Copperloy Truck Dock Boards

10,000 lb. 12,0000 lb. & 15,000 lb. capacities

Overall Width 54” to 84”

Lengths 30” to 60”

Lifting Chains optional

Aluminum Dock Board Made With Bolt-on Steel Curbs

image of a aluminum dock boards

10,000 lb.& 15,000 lb. capacities

Overall Width 54” to 72”

Lengths 36” to 60”

Lifting Chains optional

Request a Quote

Interested in our dock boards and want more info?

Let us know below and we will reach out with more details. Dealer pricing available.

Truck Dock Board Benefits:

  • Made in the USA
  • Engineered for the toughest heavy-duty cycles
  • Improve loading and unloading efficiency
  • Portable with the use of a forklift
  • Designed for electric powered and gas forklifts carrying heavier loads.

Speed Up Your Truck to Dock Loading & Unloading

The Fastest, Safest Dock Boards – Made in Twinsburg, Ohio

steel dock board

Determining The Capacity Needed For Your Facility

To determine the capacity needed for your board, use the following formula:

STEP 1: CAPACITY

Weight + Load x 0.9 = Capacity

Example: for a forklift of 11,000 lbs. and max load of 4,000 lbs., the resulting capacity would be 13,500 lbs.:

11,000 + 4,000 x 0.9 = 13,500

STEP 2: LENGTH

To determine the necessary length of your dock board is determined by the maximum amount height difference between the dock height and the floor height of the trailer(s) being serviced.

Truck Height – Dock Height = Max Height Difference

Example: if the Truck Height is 54 inches and the Dock Height is 48 inches, the Max Height Difference is +6 inches.

From here, use the table below to determine the dock board length.

But what if the Truck Height is lower than the Dock Height? In that case, you have two options.

  • The dock board (with chains instead of lift loops) must be used in reverse, with the board will be in the truck and the lip on the dock.
  • Raise the truck bed with wheel risers.

STEP 3: WIDTH

Copperloy recommends a minimum width of 60 inches for dock boards that will be used with forklifts.

Choose Copperloy For All Your Loading Dock Equipment Needs

When it comes to safe material handling, Copperloy’s inventory does not end at dock boards and dock plates. We offer customers a wide variety of American-made mobile yard ramps, dock ramp, that provide a loading and unloading facility where one isn’t already established. This wide range of equipment includes mobile yard ramps, dock-to-ground ramps, truck ramps, and forklift ramps.

Dock Boards for Loading & Truck Docks

Watch the dock equipment video below to learn more about the Copperloy® dock board. All Copperloy products offer industry-leading strength, outweighing many competitors’ capacities. All Copperloy products are made in the USA.

Quality Dock Boards over the edge of the dock to ground ramp
