Hydraulic Edge of Dock Levelers

Easily convert Copperloy’s edge of dock levelers into hydraulic edge of dock levelers with the addition of our hydraulic power unit. You can enhance loading dock productivity and efficiency, while also reducing stress and risk of injury for employees.

Made of high-quality, durable materials, our hydraulic edge of dock levelers require minimal maintenance while also offering quick and easy operation. There are 12 different models to choose from, including:

  • Capacities of 20,000 and 30,000 lbs.
  • Widths ranging from 66″ up to 84″
  • Projections of 12” and 14”

Have a unique loading dock? Copperloy’s expert in-house engineering team can custom design and manufacture hydraulic edge of dock levelers to meet your specific needs and circumstances.
Watch the dock equipment video below to learn more.

Looking To Secure a New Hydraulic Edge of Dock Leveler?
Call Today For a Quote!

——————————————————————————————————————

800-321-4968

FEATURES

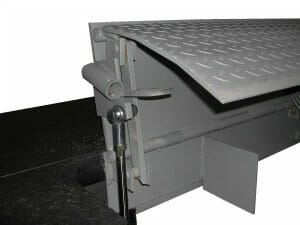

Copperloy® hydraulic edge of dock levelers shown at loading dock

Features:

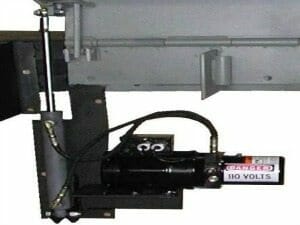

  • The hydraulic pump, motor, and cylinder are housed on a single bracket for easy wall mount installation.
  • In the event of a power failure, the cylinder arm can be disconnected from the ramp plate bracket allowing for mechanical operation of the leveler unit.
  • Lift-assist extension springs remain on our hydraulic edge of dock levelers.
  • All of Copperloy’s hydraulic edge of dock levelers are supplied with an activation handle, which doubles as a safety maintenance strut.
Copperloy® hydraulic edge of dock levelers voltage

Available Voltage:

  • 115 volt, single phase (standard)
  • 208/220 volt, single phase (available)
  • 208/230, three phase (available)
  • 460 volt, three phase (available)

Hydraulic Dock Leveler Installation

For proper hydraulic dock ramp installation, it is crucial the installer reviews the edge-of-dock manual and considers the precautions.  Initially, it is the installer’s responsibility to evaluate the health of the dock area and make any necessary repairs.

All anchors must have a minimum strength in shear of 10,000 lbs force and a minimum of 6,000 lb pullout strength in uncracked concrete. The dock leveler must also comply with all local codes.

Consult with a member of our Copperloy team for a complete overview of the proper installment steps and the hydraulic edge of dock leveler cost.  Also, check out the video below and the owner’s manual for a list of tips!

FAQS

What does an EOD come with?
An EOD comes with (2) steel bumper blocks, (2) rubber bumpers and an activation handle.

How many EOD’s can fit on a pallet?
We can ship up to 6 EOD’s on one pallet.

Why do I need a refer lip EOD?
Our refer model EOD are used for refrigerated trucks.

What is the lip projection of an EOD?
On our standard EOD, the projection is 12″ and on our Refer EOD the projection is 14″

What lip sizes do you have?
On our standard EOD, the lip is 14.4″ and on our Refer EOD, the lip is 16″

How long is an Edge of Dock activation handle?
The activation handle is 42″ long.

How much force is on the lever (handle)?
40-50lbs.

What is the diameter of the EOD handle?
1.315″ diameter

Can pallet jacks be used on an Edge of Dock?
Pallet jacks are not recommended on an Edge of Dock. It will be very bumpy for a pallet jack and it could bottom out with any height variation.

Can an existing EOD be converted to a hydraulic EOD?
Yes. A hydraulic power pack can be added to a manual EOD to convert it to a hydraulic EOD.

A Copperloy hydraulic edge of dock levelersHow does an EOD attach to the dock?
The EOD should be continuously welded to the dock edge channel. If a channel is not present then a transition plate is required.

What type of channel is required for installing an EOD?
We recommend a minimum of an 8″ steel channel with upper and lower straps alternating every 10″ with end straps on top.

Can you reduce the bend on your EOD’s?
Yes. We can reduce the bend from our standard 8˚to 5˚ . The height range will change to + or – 3″ (not available on our Refer Models).

Can you make an EOD with no bends?
NO. An EOD will not work with any bends. The EOD will hit the truck and not be able to extend.

How far apart are the holes on the 2-hole bumpers?
The holes are 7″ apart on center.

Can anything be added to the bumpers to prolong wear?
Yes. We can add Steel face bumper guards.

What is the height range on an EOD?
+ Or – 5″

What are the weights of your EOD’s?
SEL2066CG = 489lbs     SEL2066CRG = 504lbs.
SEL2072CG = 505lbs     SEL2072CRG = 520lbs
SEL3066CG = 524lbs     SEL3066CRG = 539lbs
SEL3072CG = 563lbs     SEL3072CRG = 583lbs
SEL3078CG = 598lbs     SEL3078CRG = 615lbs
SEL3084CG = 625lbs     SEL3084CRG = 642lbs

What is the freight class for an EOD for shipping?
Freight class 60

How thick is the steel on the EOD?
On our 20k capacity, it is ⅜” thick.
On our 30k capacity, it is ½” thick.

Find more answers to common hydraulic dock leveler questions like dock leveler power requirements on our yard ramp resources page or wikipedia.

Top Benefits of Copperloy Hydraulic Edge of Dock Levelers

Copperloy’s hydraulic edge of dock levelers are smooth and easy to operate. Whether using the handle or the wall-mounted push button (on the hydraulic unit) your EOD extends fully to the height of the trailer bed for safe freight handling. All the benefits of the mechanical system are also available in our hydraulic material handling warehouse dock leveler models.

Product durability: EODs are designed and engineered using a three-dimensional engineering software package.

Quick, easy lifting and positioning: Our exclusive lift mechanism and spring assembly sets the board in place with one-quarter the effort needed to operate conventional edge of dock levelers.

Push-button operation on hydraulic models: Easy operation of the hydraulic edge of dock levelers will optimize your freight dock solutions.

Ideal for retrofit: The Copperloy hydraulic edge of dock leveler easily mounts to the face of almost any dock. Transition plates and approach ramps are also available.

Safety: Every Copperloy edge of dock leveler is equipped with a safety maintenance strut to secure the unit while performing routine maintenance. Copperloy equipment is designed to meet OSHA laws and regulations to make your loading dock a safer place to work.

Low maintenance: Maintenance is reduced to simple lubrication of hinges which come equipped with grease fittings.

If you’re ready to upgrade your loading dock equipment, contact us today for more details on our hydraulic edge of dock levelers and learn about our edge of dock levelers price.

A truck using Copperloy's hydraulic edge of dock levelers What Makes Copperloy Loading Dock Equipment Superior?

  • A state-of-the-art manufacturing facility inclusive of CNC and robotic technology.
  • In-house Engineering staff reviews each job for proper application and structural integrity.
  • The technical Sales department works with Engineering and the customer throughout the manufacturing process to ensure the product meets the demands of the application.

Hydraulic Edge of Dock Levelers Proudly Made in the USA

Challenge us with your difficult application! With our in-house engineering department and complete manufacturing facility, we oversee your project from start to finish. From raw material to finished product, your order is produced within our facility. This unique situation enables us to control every step of the manufacturing process, resulting in a quality product built to last.
