Copperloy Portable Loading Dock Platforms2026-05-22T15:42:55-04:00

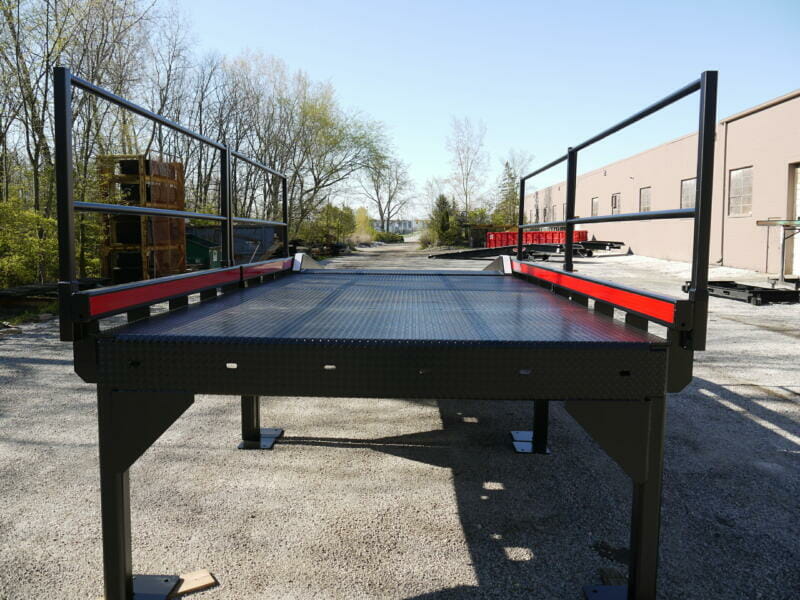

Portable Loading Dock Platform

Our self standing loading platforms create distribution capacity with ease.

  • Lock multiple platforms together to maximize sorting space
  • Simple, straightforward assembly
  • Custom capacities to match your unique application
warehouse loading dock platforms made in USA
quality loading dock platform

Modular Loading Dock Platforms Information

Capacity Overall Width Overall Length Weight Height Range Model Number
16,000 8′ 6″ 8′ 2,005 42″ – 58″ SPP16-8-8
16,000 8′ 6″ 10′ 2,230 42″ – 58″ SPP16-8-10
16,000 8′ 6″ 12′ 2,650 42″ – 58″ SPP16-8-12
20,000 8′ 6″ 8′ 2,530 42″ – 58″ SPP20-8-8
20,000 8′ 6″ 10′ 2,775 42″ – 58″ SPP20-8-10
20,000 8′ 6″ 12′ 3,164 42″ – 58″ SPP20-8-12
25,000 8′ 6″ 8′ 3,305 42″ – 58″ SPP25-8-8
25,000 8′ 6″ 10′ 3,575 42″ – 58″ SPP25-8-10
25,000 8′ 6″ 12′ 4,377 42″ – 58″ SPP25-8-12
30,000 8′ 6″ 8′ 3,590 42″ – 58″ SPP30-8-8
30,000 8′ 6″ 10′ 3,989 42″ – 58″ SPP30-8-10
30,000 8′ 6″ 12′ 4,592 42″ – 58″ SPP30-8-12

Portable Loading Dock Platforms For Safer, More Efficient Loading

A portable loading dock platform is a self-standing elevated work platform designed to create additional dock-height space for loading, unloading, sorting, and staging freight. When paired with our durable steel yard ramps, these platforms provide a flexible solution for facilities that need efficient loading access in tight spaces or areas without permanent dock infrastructure. Built entirely from heavy-duty steel, Copperloy portable loading platforms are engineered for long-term strength, reliability, and dependable material handling performance.

Loading Dock Platform Selection

Two portable loading dock platforms with our loading dock ramp

Two portable loading dock platforms with our loading dock ramp.

Features of Portable Loading Docks:

portable loading dock platform curbs

Platform Curbs

Utilize 6-inch welded safety curbs on portable loading docks to prevent inadvertent runoff. With an exclusive hollow section design and proprietary construction, these curbs effectively withstand the pressure of heavy loads and the additional strain from cargo breakout.

steel tread plate decking for portable loading dock

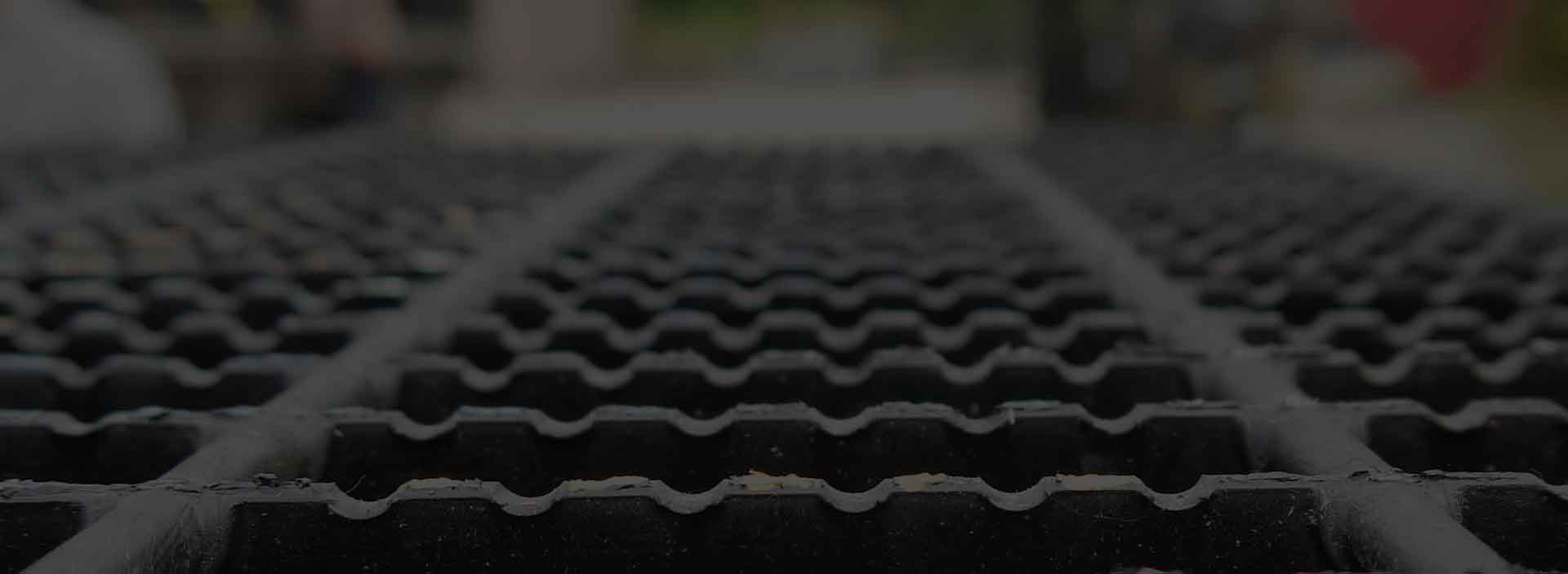

Steel Tread Plate Decking

Copperloy’s portable loading docks feature electro-forged serrated steel construction, providing exceptional strength. With grating bearing bars measuring 1-3/4 inches thick, these docks are engineered for enhanced durability in demanding environments. The bars are strategically spaced 1 inch apart to prevent debris buildup. This ensures a reliable, high-traction running surface in all weather conditions.

portable loading dock lift sleeve

Lift Sleeves

Facilitating portability requires convenient mobility solutions! Lift sleeves are included to simplify the handling and repositioning of platforms using a forklift.

moveable loading dock handrail option

Handrail Option

Handrails can be customized and added to any platform to meet your specific length requirements. Our 42-inch high split handrails are constructed entirely of steel for durability and safety.

Additional Custom Options:

Custom grating for portable loading dock platforms can be engineered to improve traction, drainage, and durability while meeting the specific load capacities and operational demands of your facility.

Custom stair configurations for loading dock platforms can be designed to enhance safe access, improve worker mobility, and withstand heavy industrial use in demanding loading and unloading environments.

Custom canopies for loading dock platforms provide added protection from weather exposure, helping maintain safer working conditions and improving efficiency during loading and unloading operations.

Request a Loading Dock Platform Quote

Interested in our loading dock platform and want more info?  Dealer pricing available.


Uses of Portable Loading Dock Platforms

Distribution Centers

Loading dock platforms help distribution centers and last-mile fulfillment hubs expand loading capacity quickly, improve trailer access, and support faster, more efficient shipping and receiving operations.

Warehouse Extensions

Warehouse extension platforms allow facilities to turn a single dock door into multiple loading positions while providing flexible configurations that expand dock-height space and adapt to changing operational needs without permanent construction.

quality portable loading platform extension

Choose The Long Term Loading Solution

Tell us about your application

Here’s What Our Customers Say

From William M. Petro, President of Century-Fournier Inc.

“I wanted to thank you for coordinating the pick-up, repair, and return to Metalico of the subject yard ramp in less than 24 hours. This enabled Metalico to continue operations with minimal downtime. Their management was very grateful for this turnaround.

We all want to sell our goods, be productive, profitable and be recognized for quality products and services, however, I believe the real test of a company’s fiber is how well it handles problems. JH Industries (Copperloy) has passed that test!

I’m sure there are many personnel that contributed to this successful repair. Please advise them how much we appreciate their contribution.”

Our Satisfied Customers

Loading Dock Extension Platform FAQs

Our loading dock platforms are typically available in capacities ranging from 16,000 lbs. to 30,000 lbs. We also can provide custom capacities, when requested.

Standard platform widths are 8’6″ with available lengths of 8′, 10′, and 12′. Custom platform sizes are also available upon request.

Loading docks typically adhere to standardized heights to ensure compatibility with most vehicles. In regions like the United States, the common standard height is approximately 48 inches (4 feet) above ground level, known as “dock height.” This standardization facilitates efficient loading and unloading processes, as it aligns with the typical height of truck beds, usually ranging from 48 to 52 inches.

Maintaining a consistent dock height of 48 inches enables seamless transitions between the loading dock and the truck or trailer. This uniformity streamlines operations, allowing forklifts and other handling equipment to move directly between the dock and the vehicle without the need for excessive lifting or lowering.

While 48 inches serves as a prevalent standard, variations may exist, especially in facilities with non-standard dock heights or older buildings predating widespread standardization. In such instances, customized loading solutions or dock levelers can be employed to bridge height disparities, ensuring compatibility with specific vehicle heights.

Determining the optimal size of a loading dock is not a one-size-fits-all endeavor; rather, it hinges on tailoring the design to align with the distinct demands of the facility and its operations. However, several factors can guide the determination of the appropriate dimensions:

  1. Loading Bay Quantity: The size of the loading dock often correlates with the number of loading bays necessary to handle incoming and outgoing goods efficiently. More bays required equate to a larger loading dock area.
  2. Dock Width: Ensuring sufficient width allows for the safe maneuvering of material handling equipment, like forklifts, and provides ample space for loading and unloading tasks. While a standard width typically ranges from 10 to 12 feet, broader dimensions may be warranted for larger-scale operations.
  3. Clearance Space: Adequate clearance around the loading dock is vital for maneuvering vehicles and equipment safely, promoting smooth operations.
  4. Buffer Zones: Dedicated buffer areas, or staging areas, are crucial for organizing goods before loading or unloading from trucks. Tailoring the size of these areas depends on the volume and characteristics of the goods being handled.
  5. Dock Equipment: Allow sufficient space for dock levelers, bumpers, and other essential equipment integral to the loading and unloading processes, ensuring unimpeded flow of goods and equipment.
  6. Building Layout: Consider the overall footprint and available space within the building or facility when designing the loading dock area.
  7. Traffic Flow: Efficient movement of trucks, equipment, and personnel within and around the loading dock area should be factored into the design.
  8. Safety Compliance: Adhering to local safety and building codes specifying minimum requirements for loading dock size and clearance areas is paramount.
  9. Future Expansion: Anticipate potential growth and expansion of operations, ensuring that the loading dock design accommodates increased demands and allows for the addition of more loading bays if needed.

Collaborating with architects, engineers, and logistics specialists is essential in crafting a loading dock that precisely addresses the facility’s unique needs. Prioritizing safety, efficiency, and flexibility in the design fosters seamless operations and adaptability to evolving requirements.
