WAREHOUSE EDGE OF DOCK LEVELERS
A lowest cost solution to get a working dock with a 5″ or less gap
Have you and your team been planning to invest in durable warehouse edge of dock levelers? Connect with the manufacturing team from Copperloy by JH Industries today to learn more.
Watch the dock equipment video below to learn more.

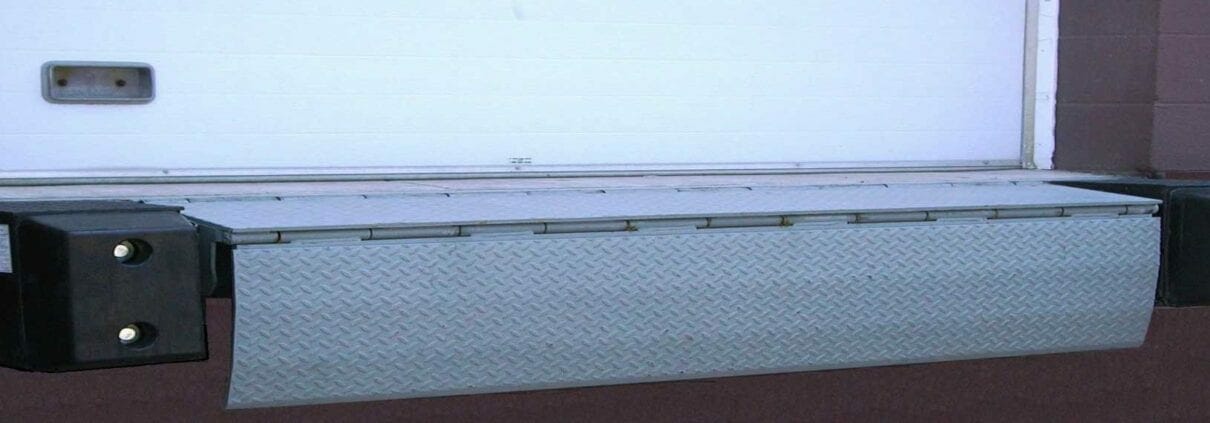

Warehouse Edge of Dock Levelers From Copperloy by JH Industries
Looking for equipment to bridge the gap between a loading dock and a truck ramp? Durable warehouse edge of dock levelers from Copperloy by JH Industries could be right for your facility.
Significantly, an edge of dock leveler provides a fixed alternative to a movable dock board. Copperloy by JH Industries offers pieces in 66”, 62”, 78” and 84” widths to accommodate nearly any facility’s setup.
Copperloy’s exclusive models can accommodate trucks 5” above or below loading dock levels. In addition, these pieces are available in both 20,000 lb. and 30,000 lb. models. Customers can choose from both mechanical and hydraulic models to meet the distinct needs of their teams.
These pieces can fit almost any loading dock. Customers can benefit from transition plates and approach ramps to ensure correct fitting.
Why choose a Copperloy by JH Industries edge of dock leveler? These installations are notable for their ease of both operation and maintenance. For example, an exclusive lift mechanism and spring assembly combination position the board with considerably less effort than the comparable edge of dock levelers.
These models also help to maximize safety in a warehouse environment. Specifically, these pieces feature exclusive safety maintenance struts to secure levelers during maintenance.
Maintaining a Copperloy by JH Industries edge of dock leveler is easy. To keep your installation working as efficiently as possible, simply lubricate the leveler’s hinges as necessary. To learn about how a Copperloy by JH Industries installation could help you maximize efficiency in your workspace, simply reach out to the manufacturing team today.
A loading dock leveler is a perfect solution for when dock space is limited, or when the working range of a full-size, pit-style edge of dock leveler is not needed. Each Copperloy EOD is available with hydraulic or mechanical activation (lift) for smooth and reliable operation.
Choosing the Right Edge of Dock Leveler for Your Facility
Are you and your team planning to implement the edge of dock levelers as part of your facility upgrade? If so, then you and your team will need to set aside some time to get on the same page regarding facility requirements and project goals.
For example, it will be critical to consider how frequently you will use a loading dock, necessary load capacities, and how a piece of equipment could impact cleaning procedures specific to your industry or facility. Every project is different, and the team from Copperloy by JH Industries can help you find the right piece of equipment for your goals.
EDGE OF DOCK FEATURES
EDGE OF DOCK LEVELERS SPECIFICATIONS
High strength low alloy (50,000 lb. Minimum Yield) tread plate, lip beveled for smooth transition.
PROJECTIONS
Bumpers 16″. Ramp 13 1/2″ in the stored position. The lip extends 12″ beyond the bumpers on standard lip models and 14″ on refer lip models.
BUMPERS
4″ x 13″ x 10″ molded reinforced rubber mounted to the steel box frame. Optional 4″ x 12″ x 13″ bumper assembly.
LIFT ASSIST
Dual extension springs.
FINISH
The unit is completely cleaned, deburred and painted gray.
SERVICE RANGE
Capable of servicing trucks 5″ above and 5″ below the dock.
CAPACITIES
20,000 lb. and 30,000 lb.
WIDTHS
66″, 72″, 78″, 84″
OPTIONS
Consult the factory for more information:
- Refer Lip
- Reduced Lip bend
- In-Board Handle Assembly
- Hydraulic Model – 115/230 VAC Single Phase
About Copperloy by JH Industries
When you upgrade your facility’s freight handling setup, you can maximize safety, efficiency, and profitability in your facility. Have you and your team been looking for durable freight handling solutions? Client businesses from across a diverse range of industries have counted on Copperloy by JH Industries for loading dock equipment for more than five decades.
Whether you have been looking for dock boards, dock plates, yard ramps, or edge of dock levelers, Copperloy by JH Industries has what you need. Connect with the team today to take the next step in upgrading your facility.
The Copperloy by JH Industries team maintains the most current in both robotic and computer numerical control (CNC) technologies to keep product quality as high as possible. The team also maintains machinery to provide premier custom steel fabrication and design services.
Above all, the Copperloy by JH Industries team commits to the safety of client companies’ workspaces. When you choose Copperloy by JH Industries, you can make your facility a safer, more efficient and more profitable place.
