Loading Dock Plate

The Quickest Way to Bridge the Gap from Dock to Truck

Copperloy Dock Plate

Copperloy loading dock plates provide a simple, cost-effective way to connect your dock to a truck or trailer. Designed for lighter-duty applications, they create a smooth, reliable transition for pallet jacks, carts, and manual material handling equipment.

Lightweight, portable, and easy to position, dock plates help keep freight moving efficiently—without the need for heavier dock systems.

What is a Loading Dock Plate?

A loading dock plate is a flat metal bridge used to span the gap between a dock and a trailer, allowing materials to move safely between the two.

Because dock plates do not include side curbs, they are easier to maneuver in tight spaces and ideal for operations using pallet jacks, dollies, and carts.

They are best suited for lighter loads where flexibility and portability are more important than heavy-duty capacity.

When to Use a Dock Plate

Dock plates are the right solution when your operation requires:

Pallet jacks, carts, and hand trucks (no forklift traffic)
Lighter-duty loading and unloading tasks
Tight turning conditions or limited dock space
A portable, easy-to-move loading solution
A cost-effective alternative to dock boards

For heavier loads or forklift use, a dock board is typically the better option.

Request a Quote

Interested in our dock plate and want more info?

330-963-4105

Let us know below and we will reach out with more details. Dealer pricing available.

Loading Dock Plate Categories

Dock Plates Built for Your Operation

Find the right dock plate for your loading needs.

REQUEST A QUOTE

Loading Dock Plate FAQs

Dock Plate vs Dock Board

Dock plate or dock board? Choosing the right equipment is critical for safety and performance:

Dock Plate → Lightweight, no curbs, best for pallet jacks
Dock Board → Heavy-duty, includes curbs, built for forklifts

Using the correct solution prevents damage, improves efficiency, and keeps operators safe.

What Is the Standard Lip Size on a Dock Plate?

Most dock plates include an 11-inch lip that rests securely on the trailer bed. In some applications, an optional 14-inch lip is available to provide additional engagement with the truck floor.

What Height Differences Can Dock Plates Handle?

Dock plates are designed to bridge small vertical gaps between the dock and the trailer. Depending on the model and length, they can typically accommodate height differences ranging from about +3 inches up to +12 inches.

How Do Dock Plate Length and Height Difference Relate?

The length of the dock plate determines the height difference it can safely bridge. Longer plates allow for greater vertical differences between the dock and the trailer while maintaining a manageable loading grade.

What Dock Plate Widths Are Commonly Available?

Dock plates are manufactured in several widths to accommodate different loading environments. Common widths include 36 inches, 48 inches, 60 inches, and 72 inches, allowing facilities to match the plate to their dock and equipment requirements.

Choosing the Right Dock Plate for Your Space

Copperloy’s range of dock plates is engineered to withstand capacities ranging from 1,000 to 17,000 lbs, making them optimal for accommodating pallet jacks, dollies, and carts within this weight range.

Specifications of an Aluminum Dock Plate

Designed to handle loads of up to 12,500 pounds, Copperloy’s aluminum dock plates are perfectly suited for traffic generated by lighter material handling equipment. While not intended for use with forklifts, these plates excel with handcarts and lighter material handling equipment. Despite their lightweight construction, our aluminum plates feature lift straps for enhanced convenience.

Specifications of Steel Dock Plates

For installations requiring higher weight capacities than those handled by aluminum dock plates, Copperloy’s steel dock plates offer the ideal solution. With capacities of up to 17,000 pounds, these plates are capable of accommodating traffic generated by fork trucks. Although steel dock plates sacrifice some portability due to their weight, they provide robust support for heavier loads. Featuring a one-piece lift chain for ease of use, our steel plates are engineered for durability and reliability.

While steel dock plates offer higher weight capacities, the choice between dock plates and industrial dock boards depends on various factors such as activity levels within the facility. For personalized guidance on selecting the optimal solution for your specific requirements, don’t hesitate to connect with our knowledgeable manufacturing team at Copperloy. We’re here to help you make informed decisions and maximize the efficiency of your loading operations.

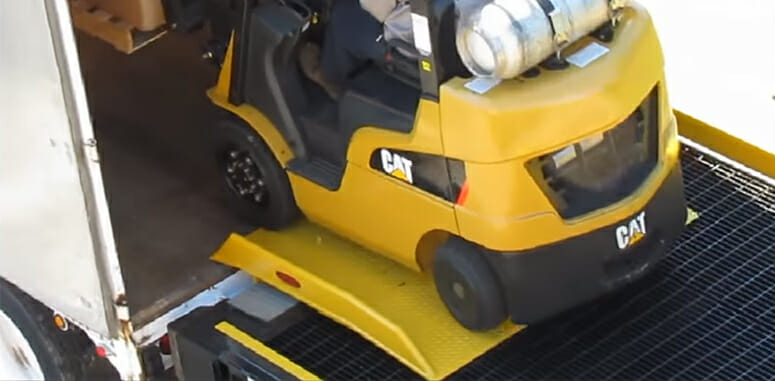

Dock Boards: The True Forklift Dock Plate

If you’re in search of a robust solution for forklift traffic, consider Copperloy Dock Boards as an alternative to forklift dock plates. Dock boards, serving as the larger counterparts to steel dock plates, offer superior capabilities to handle heavier capacities and accommodate larger equipment.

Unlike dock plates, dock boards are designed to withstand the demands of forklifts and fork trucks, making them suitable for more substantial loading tasks. Additionally, dock boards feature curbs to prevent runoff, enhancing safety and efficiency during loading and unloading operations. Similar to dock plates, Copperloy offers dock boards in both steel and aluminum variants.

Copperloy dock boards are the heavy-duty option for installations requiring significant forklift traffic. Featuring side curbs for runoff prevention, these boards boast high weight capacities ranging from 15,000 to 20,000 lbs. Customers can select from steel or aluminum models based on their project requirements and goals.

For further information on material options, weight capacities, and customization possibilities, reach out to the Copperloy team today. We’re here to assist you in finding the ideal solution to meet your specific loading needs and enhance the efficiency of your operations.
