American Made Yard Ramps
Engineered for the Highest Speed & Forklift Safety with 10 Unique Features

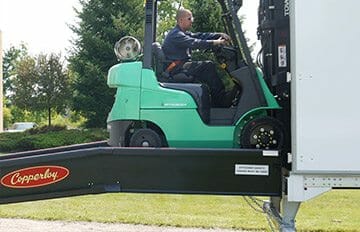

8-Foot Level Off
The 8-foot level-off ensures forklifts can safely and easily enter and exit trailers, loading docks, and platforms without stopping. It stabilizes the ramp, especially for mobile ramps.

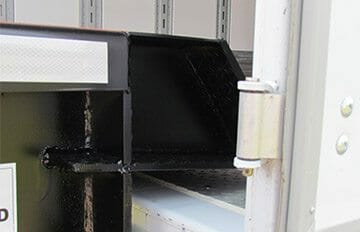

15-Inch Lip
The 15-inch lip securely rests on the truck or platform, with eight-foot safety chains preventing the ramp from detaching.

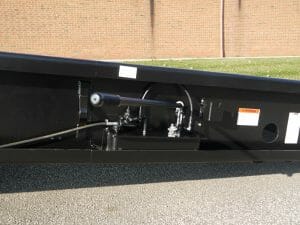

Hydraulic Pump
The single-acting hydraulic hand pump raises the ramp with minimal effort, and is protected from dirt and damage for easier maintenance.
Safety Curbs
7-inch high curbs prevent accidental runoff, with a patented box frame design for added stability.
Smooth Side Plates
Smooth side plates and safety curbs protect working components and are made from high-strength steel for durability.

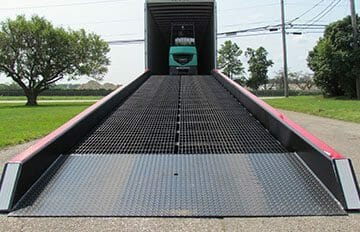

Low End Plate
The shorter end plate allows forklift front wheels to reach high-traction grating while keeping the rear wheels grounded for smooth entry and exit.

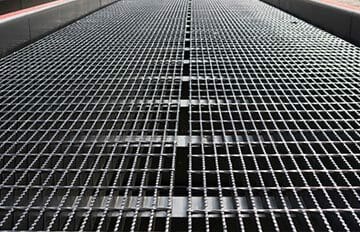

Deck Grating
High-strength steel grating ensures durability and traction in all weather conditions, with debris falling through the 1-3/4 inch bars.

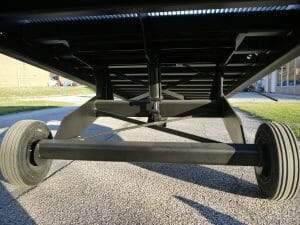

18-Inch Solid/Pneumatic Tires
Solid/pneumatic tires are maintenance-free, eliminating the need for air.

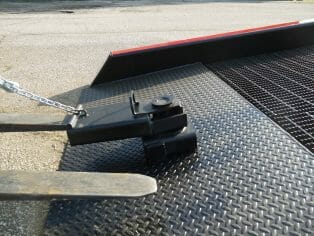

Positioning Sleeve
The 180-degree positioning sleeve allows for quick ramp alignment, reducing loading/unloading time and boosting productivity.

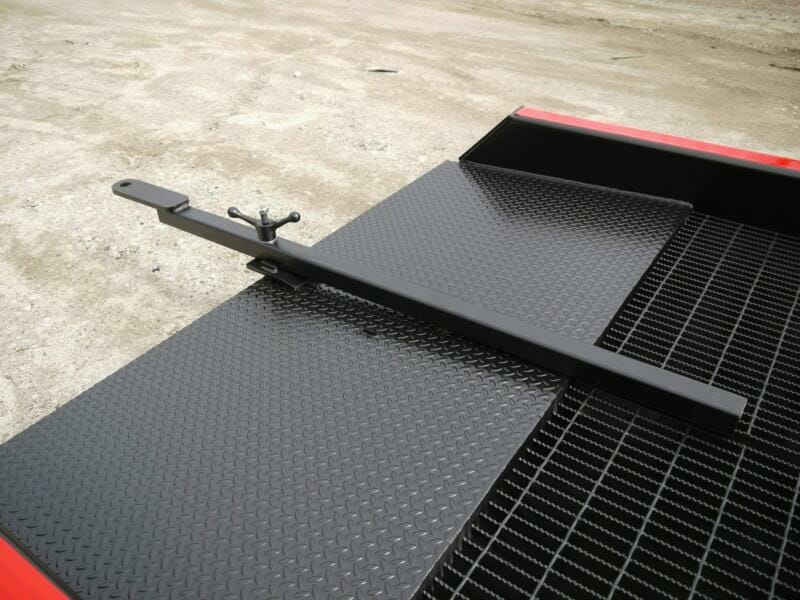

Tow Bar
An optional tow bar lets you move the ramp short distances within your facility using a forklift, with a maximum towing speed of 5 mph.
Yard Ramps for Safer, Faster Loading
Copperloy yard ramps give facilities a safer, more flexible way to load and unload trucks from ground level. Built in the USA for forklift traffic, heavy-duty capacity, and long-term industrial use, our yard ramps help keep freight moving when a permanent loading dock is not available.
Standard Features Include:
- 8-foot level-off for smoother forklift transitions
- 15-inch lip with safety chains to help secure the ramp during loading
- 7-inch safety curbs to help guide equipment on the ramp deck
- Serrated steel grating for added forklift traction
- Hydraulic height adjustment for easier ramp positioning
- Positioning sleeve and optional tow bar for easier placement and mobility
Choose The Right Yard Ramp For Your Operation
Yard Ramp Sizes, Capacities & Models
Copperloy yard ramps are available in multiple capacities and widths to support different forklift, freight, and facility requirements. Standard models include 36-foot lengths, 38–65 inch height ranges, and capacities from 16,000 to 30,000 pounds.
| Capacity | Length | Overall Width | Usable Width | Approx. Weight | Height Range | Model Number |
|---|---|---|---|---|---|---|
| 16,000 | 36’ | 70” | 62” | 5,350 | 38” – 65” | SYR16-70-36PL8 |
| 16,000 | 36’ | 84” | 76” | 5,990 | 38” – 65” | SYR16-84-36PL8 |
| 16,000 | 36’ | 96” | 88” | 6,700 | 38” – 65” | SYR16-96-36PL8 |
| 20,000 | 36’ | 70” | 62” | 5,480 | 38” – 65” | SYR20-70-36PL8 |
| 20,000 | 36’ | 84” | 76” | 6,120 | 38” – 65” | SYR20-84-36PL8 |
| 20,000 | 36’ | 96” | 88” | 6,910 | 38” – 65” | SYR20-96-36PL8 |
| 25,000 | 36’ | 70” | 62” | 6,440 | 38” – 65” | SYR25-70-36PL8 |
| 25,000 | 36’ | 84” | 76” | 7,130 | 38” – 65” | SYR25-84-36PL8 |
| 30,000 | 36’ | 84” | 76” | 7,870 | 38” – 65” | SYR30-84-36PL8 |
