MOBILE LOADING DOCK RAMPS

Mobile Loading Dock Ramps by Copperloy

Loading Dock Ramps Features / Loading Dock Ramps Video

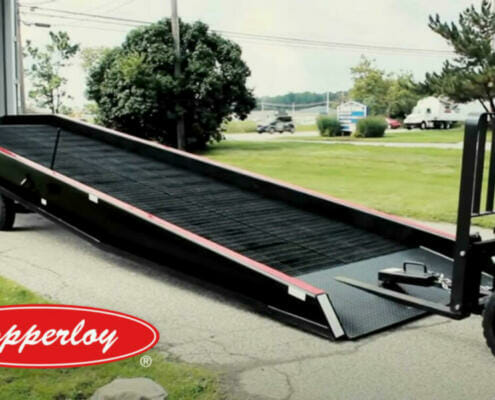

Mobile loading dock ramps convert vacant space into a freight-handling center. It’s a versatile piece of loading dock equipment that will expand your present dock capacity and create loading facilities where no dock exists, without new construction. Mobile loading dock ramps provide ground-level access to trucks, railcars, or buildings. Their mobility makes it easy to move from job to job and handle freight with a forklift or lift truck virtually anywhere.

Our wide range of new and used mobile loading dock ramps come with maximum capacities of up to 30,000 lbs.  The standard Copperloy mobile loading dock ramp is steel. Aluminum ramps with steel grating are available, please contact the factory for more information.

Watch the yard ramp video below to learn more.

Looking For a Mobile Loading Dock Ramps for Your Business?
Call Today For a Quote!

——————————————————————————————————————

800-321-4968

Copperloy Dock Ramp & Yard Ramp Video:

All Copperloy ramps offer industry-leading strength, outweighing many competitors’ capacities. All Copperloy products are made in the USA.

Features of Mobile Loading Dock Ramps

Copperloy® yard ramp level off image

8-FOOT LEVEL OFF

Copperloy mobile loading dock ramps have an 8-foot level off feature. This is necessary for forklifts to have easy access onto trucks, loading docks, and platforms. It allows the fork truck to safely enter the trailer at a level approach and without having to stop. This feature makes for a very stable mobile yard ramp and is especially useful on mobile ramps.

Copperloy® yard ramp lip design

15-INCH LIP

The 15-inch lip is designed to firmly rest on the truck carrier body, dock floor, or platform. Our portable dock ramps come equipped with eight-foot-long safety chains. Chains join the ramp to keep it from pulling away.

Copperloy® hydraulic pump on yard ramps

HYDRAULIC PUMP

The single-acting hydraulic hand pump design requires half the effort needed to raise the ramp compared to other mobile loading dock ramps. The pump is relocated so that it is protected away from dirt, debris, damage and makes maintenance easier to perform. The handle is stored out of the way when not in use.

side plate design on Copperloy® yard ramps

SMOOTH SIDE PLATES

Smooth side plates and safety curbs are standard. They are constructed of high-strength steel and enclose all working components, while also protecting them from possible damage from other equipment.

Copperloy® low end plate ramp

LOW END PLATE

We designed an end plate that is shorter than the wheelbase of most forklift trucks. This way, front-drive wheels can reach high-traction grating, while rear wheels are still on the ground. The plate comes standard with beveling from the underside. This helps to provide an easy and smooth ground-level entry. It also eliminates jolts and bumps as the forklifts travel on and off the mobile ramp, with or without a load.

Copperloy® grating for yard ramps

DECK GRATING ON OUR YARD RAMPS

High-strength steel is standard on all Copperloy mobile loading dock ramps. Grating bars are constructed for durability in the roughest of applications. The 1-3/4 inch bar depth allows snow, rain, and other debris to fall through. The serrated grating helps to ensure an all-weather, high-traction running surface.

Copperloy® dock ramp safety curbs

SAFETY CURBS

7-inch high curbs are standard on all Copperloy portable dock ramps to help prevent accidental runoff with a patented box frame.

Copperloy® ramp tire design

18-INCH SOLID/PNEUMATIC TIRES

The solid/pneumatic tires are standard on all Copperloy mobile loading dock ramps and are ideal for all applications. The tires do not require air to fill, are maintenance-free, and have lubricated-for-life bearings.

Copperloy® ramp positioning sleeve

THE YARD RAMP POSITIONING SLEEVE

The position sleeve allows the ramp to maneuver 180 degrees which reduces loading/unloading time and increases productivity. The fork slides into the positioning sleeve and the ramp can easily be positioned into place. The positioning sleeve is included with all steel portable dock ramps. The sleeve is not intended for long-distance towing.

Copperloy® forklift ramp tow bar

TOWBAR

A towbar is an option on both steel and aluminum mobile yard ramps that attaches to the lower end of the loading ramp. It allows the ramp to be towed a short distance (within your facility). The max towing speed is 5-mph and is not intended for over-the-road towing.

    Types of Mobile Loading Dock Ramps

    Create a Portable Dock Anywhere with Mobile Loading Dock Ramps

    Companies can create a dock anywhere with a mobile yard ramp by easily converting open yard space into a portable loading dock. Yard ramps provide a safe, efficient method to load/unload freight with forklifts and access the back of the truck. A yard ramp is a cost-effective way to expand freight handling capacity beyond the physical loading docks in a facility.

    Mobile Loading Dock Ramps

    The mobile yard ramp acts as a mobile loading dock ramp and is an ideal solution for shipments that need to go from ground level to the truck and a fast method to unload a truck to the ground. Copperloy offers both aluminum ramps and steel ramps depending on your weight and application requirements.  Rentals are available and ideal for short-term projects.

    Steel Mobile Loading Dock Ramps

    Copperloy steel mobile loading dock ramps are available in different base materials. However, steel is the standard base for yard ramps. As a leader in custom steel fabrication, Copperloy has mastered the craft of high-strength steel specifications and integrated features such as a serrated steel grating for added traction. Manufactured in the USA, steel ramps are built for durability and made to last.

    Dock-to-Ground Ramps

    Our dock-to-ground yard ramps provide a stationary, semi-permanent solution and are typically fixed to the dock for fast, efficient loading/unloading solution handling weights up to 30,000 lbs. Copperloy dock-to-ground ramps can be custom built to the specifications of your dock for a safe, versatile way to expand the capability of your loading dock.

    Overhead image of mobile loading dock rampsGround-to-Truck Yard Ramps

    Ground-to-truck ramps allow for easy ground-level access to semi-trucks. Copperloy mobile loading dock ramps allow for maximum safety and productivity when unloading and loading. Designed for industrial use, ramps are available in aluminum or steel based on your material handling requirements.

    Heavy-Duty Mobile Loading Dock Ramps with Dock Platforms

    For facilities with limited space or no permanent dock exists, portable loading docks can provide a cost-effective solution for parallel loading when used with dock-to-ground or yard ramps. Copperloy’s portable loading platform features durable steel construction that can handle capacities up to 60,000 pounds. Their unique design allows lift trucks to easily make right-angle turns. Multiple portable loading docks can be connected when larger portable loading docks are required.

    Applications of High-Capacity Yard Ramps

    Typical uses of our heavy-duty, high-capacity steel yard ramps include:

    • Industrial equipment applications
    • Construction equipment, machinery, and supplies
    • Flatbed truck unloading/loading
    • Military applications such as loading military vehicles and equipment
    • Tractors, skid steers, bobcats, and other heavy equipment
    • Heavy equipment rentals
    • Warehouse equipment
    • Car and vehicle ramps

    Portable Dock Ramp Safety

    Although Copperloy portable yard ramps are designed with safety features, operating a forklift on a ramp should be done with the utmost caution. Prior to using the ramp, it is important to thoroughly review the owner’s manual. Only trained personnel should operate the ramp.

    It is extremely important to ensure that the ramp is properly secured before loading and unloading tasks. View the owner’s manual for a full overview of instructions and precautions. We also recommend reviewing the OSHA ramp guidelines.
